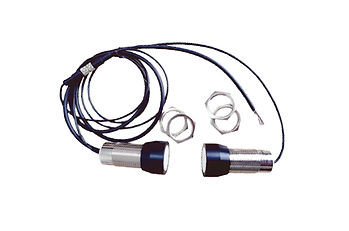

M30 Single And Double Sheet Detection UDA Ultrasonic Sensor series:

Model, Switch output:

UDA-30GM60-100-3E3, 3-way switch PNP, normally open

UDA-30GM60-100-3E1, 3-way switch NPN, normally open

UDA-30GM60-100-3E4, 3-way switch PNP, normally closed

UDA-30GM60-100-3E2, 3-way switch NPN, normally closed

Transmitter-receiver spacing: 20-100mm

Blind area: 7mm in front of the transmitter and receiver

Maximum allowable angle deviation: ±45 degrees from the vertical plane

Working range: Metal plate less than 3mm thick

Working voltage: 10-30V DC, reverse polarity protection

LED green light: Indication: single sheet detected

LED yellow light: Indication: no target (air)

LED red light: Indication: double sheet detected

No-load current: ≤30mA

Working current: 3×200mA short circuit protection overload protection

Overload protection: 200mA, red and green lights flash at the same time

Voltage drop: ≤2V

Response delay: 100ms

Pulse width: ≥100ms

Impedance: ≥4kQ

Material: Nickel-plated copper sleeve, plastic fittings, glass-filled epoxy resin

Protection level: IP67

Connection type: 2m, PVC cable 0. 14mm2

Ambient temperature: -25℃~+70℃(248~343K)

Storage temperature: -40℃~+85℃(233~358K)

Weight: 382g
