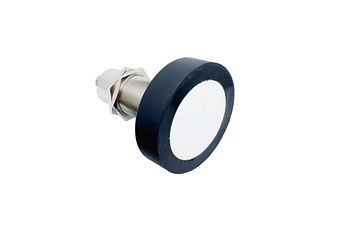

350-6000mm M30 Ultrasonic Sensors Analog Output/Digital Output I/U/IU/IE4/UE4, RS485:

Model:

UB6000-30GM70-I-V15

UB6000-30GM70-U-V15

UB6000-30GM70-IU-V15

UB6000-30GM70-IE4-V15

UB6000-30GM70-IE5-V15

UB6000-30GM70-UE4-V15

UB6000-30GM70-UE5-V15

UB6000-30GM70-R4-V15

Detection range: 350-6000mm

Blind Zone: 0-350mm

Resolution: 0.17-2.5mm

Repeatability: ±0.15% of full scale value

Absolute Accuracy: ±1% (built-in temperature drift compensation)

Response Time: 232ms

Power-on delay: <500ms

Operating Voltage: 10-30V DC,reverse polarity protection

LED red: No target on, no target blinking while learning

LED green: Target detected always on, target blinking when learning

Overload protection: 200mA,Red light and green light flash at the same time

Load Impedance: I/0~300 Ohm,U/>1k Ohm

No-load current: ≤30mA

Input Type: With synchronization function and learning function

Material: Nickel-plated copper bushing, plastic parts, glass-filled epoxy resin

Protection Grade: IP67

Connection Type: 5 pole M12 connector

Ambient Temperature: -25℃~+70℃(248~343K)

Storage Temperature: -40℃~+85℃(233~358K)

Weight: 185g

I Output Type: 1 analog current output 4-20mA, rising/falling

U Output Type: 1 analog voltage output 0-10V, up/down

IU Output Type: 1 analog current output 4-20mA + 1 analog voltage output 0-10V, up/down

IE4 Output Type: 1 analog current output 4-20mA + 1 switch output npn, up/down, NO/NC

IE5 Output Type: 1 analog current output 4-20mA + 1 switch output pnp, up/down, NO/NC

UE4 Output Type: 1 analog voltage output 0-10V + 1 switch output npn, up/down, NO/NC

UE5 Output Type: 1 analog voltage output 0-10V + 1 switch output pnp, up/down, NO/NC

R4 Output Type: 1 digital output RS485 modbus-rtu

Certification: CE
